红绿柱辨行情强弱,起伏之间,稳得住心态方能看清方向

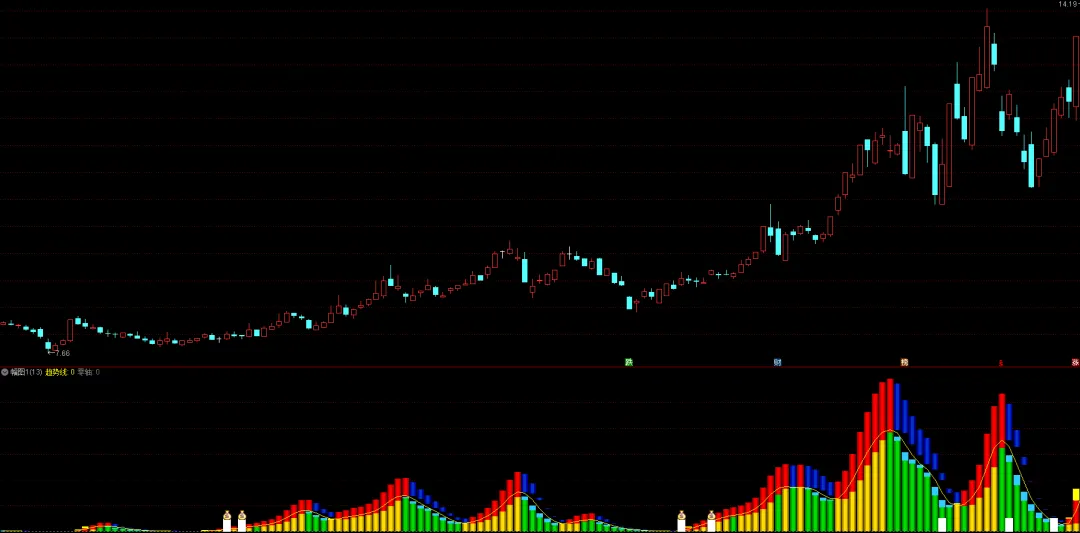

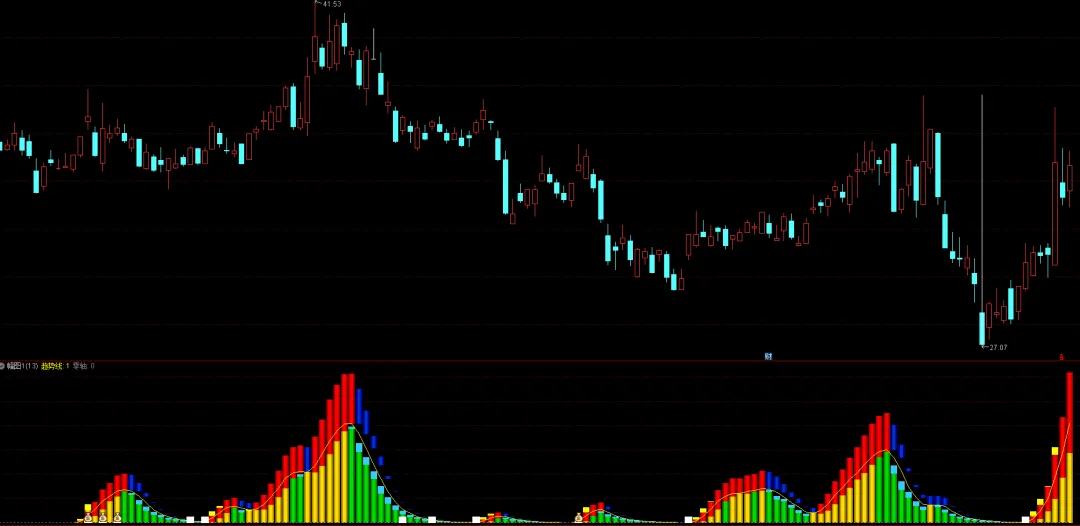

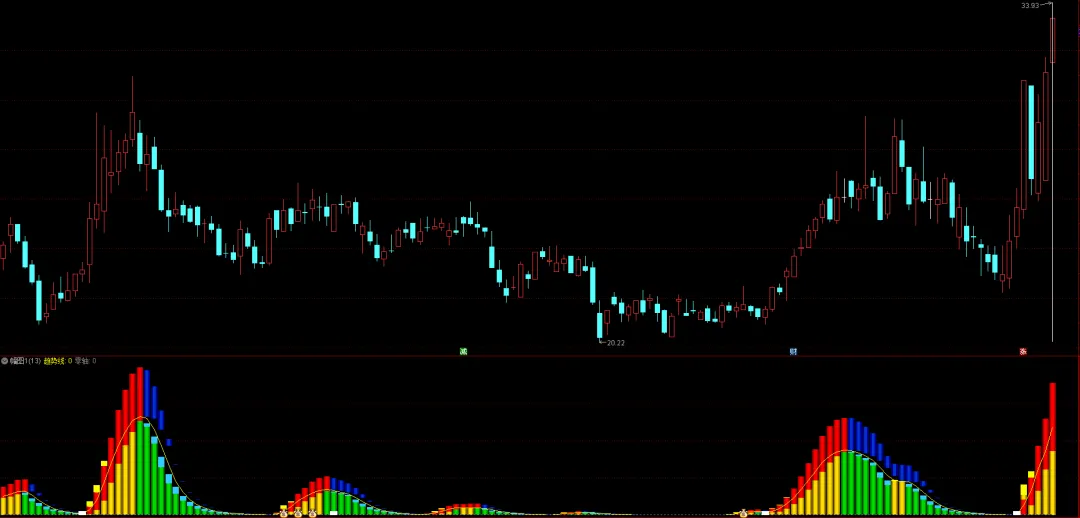

大家看以上的截图，感兴趣的朋友可以获取，因为指标仅是普通参考，没有准确率和成功率。

您能支持，我是继续创作的动力，同时也会继续为大家发掘效果更好的工具，希望本次分享的工具能真正帮到您。

幅图源码如下:

{===基础定义区===}

DIFF := EMA(CLOSE,68) - EMA(CLOSE,170);

DEA := EMA(DIFF,90);

MACD_VAL := 2*(DIFF-DEA);

{===中间变量计算===}

A := MACD_VAL;

G := MA(MACD_VAL,2);

AA := (MA(C,1)+MA(C,3)+MA(C,5)+MA(C,7)+MA(C,9))/5;

BB := (MA(C,2)+MA(C,4)+MA(C,6)+MA(C,8)+MA(C,10))/5;

VAR4 := MAX(EMA(AA,2)-EMA(BB,5),0)*1.2;

VAR5 := EMA(VAR4,5); {波浪核心}

SS := EMA(VAR5,2);

{===绘图层级1：底层波浪（资金力度）===}

{波浪上升 - 金色主力资金}

STICKLINE(VAR5>REF(VAR5,1),VAR5,0,3,0),COLOR0088AA; {深金底色}

STICKLINE(VAR5>REF(VAR5,1),VAR5,0,2,0),COLOR00AACC;

STICKLINE(VAR5>REF(VAR5,1),VAR5,0,1,0),COLOR00DDFF; {亮金高光}

STICKLINE(VAR5>REF(VAR5,1),VAR5,SS,3,0),COLOR00FFFF; {波峰高亮}

{波浪下降 - 青绿资金流出}

STICKLINE(VAR5<REF(VAR5,1),0,VAR5,3,0),COLOR008800; {深绿底色}

STICKLINE(VAR5<REF(VAR5,1),0,VAR5,2,0),COLOR00AA00;

STICKLINE(VAR5<REF(VAR5,1),0,VAR5,1,0),COLOR00DD00; {亮绿高光}

STICKLINE(VAR5<REF(VAR5,1),VAR5,SS,3,0),COLORFFCC33; {波峰警示色}

{===绘图层级2：顶层飘带（趋势加速）===}

A10 := VAR5;

B := MA(A10,3);

B2 := MA(B,2)*2-B;

{红色加速带 - 只有在波浪之上才显示，代表主升浪加速}

STICKLINE(B>B2,1.5*B,B2,3,0),COLOR0000AA;

STICKLINE(B>B2,1.5*B,B2,2,0),COLOR0000CC;

STICKLINE(B>B2,1.5*B,B2,1,0),COLOR0000FF;

{蓝色压力带 - 代表动能衰竭}

STICKLINE(B<B2,1.5*B,B2,3,0),COLOR990000; {深蓝/灰蓝}

STICKLINE(B<B2,1.5*B,B2,1,0),COLORCC3300;

{描边线，增加精细度}

趋势线: B, COLORYELLOW, LINETHICK1;

零轴: 0, COLORGRAY, DOTLINE;

{===绘图层级3：信号点===}

{长周期MACD金叉信号 - 底部启动点}

MACD金叉 := CROSS(MA(A,1),G);

STICKLINE(MACD金叉, 0.05, 0, 4, 0), COLORWHITE; {加粗白色信号柱}

DRAWICON(MACD金叉 AND B>B2, 0.08, 9); {上方加个图标更明显}

{升跌参考，不绘图，仅作为数值参考}

升跌:=EMA((C/MA((2*C+H+L)/4,8)-1)*100,3);

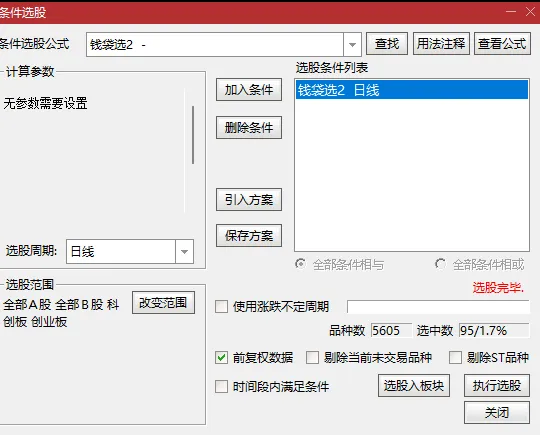

选公式如下：

DIFF := EMA(CLOSE,68) - EMA(CLOSE,170);

DEA := EMA(DIFF,90);

MACD_VAL := 2*(DIFF-DEA);

{===中间变量计算===}

A := MACD_VAL;

G := MA(MACD_VAL,2);

AA := (MA(C,1)+MA(C,3)+MA(C,5)+MA(C,7)+MA(C,9))/5;

BB := (MA(C,2)+MA(C,4)+MA(C,6)+MA(C,8)+MA(C,10))/5;

VAR4 := MAX(EMA(AA,2)-EMA(BB,5),0)*1.2;

VAR5 := EMA(VAR4,5); {波浪核心}

SS := EMA(VAR5,2);

{===绘图层级1：底层波浪（资金力度）===}

A10 := VAR5;

B := MA(A10,3);

B2 := MA(B,2)*2-B;

{描边线，增加精细度}

趋势线:=B, COLORYELLOW, LINETHICK1;

零轴:=0, COLORGRAY;

{===绘图层级3：信号点===}

{长周期MACD金叉信号 - 底部启动点}

MACD金叉 := CROSS(MA(A,1),G);

XG:MACD金叉 AND B>B2;

源码有任何问题，都可以留言哦!

声明:源码仅供知识学习之用，无操作指导能力，依次操作，自行承担所有后果
